Glovebox Business

Introducing Our Glove Box Products

　

Over 20 years of extensive experience
2000 (Founding):
Founded with the purpose of manufacturing and selling vacuum equipment for research. Subsequently, we connected our own vapor deposition equipment with glove boxes from other manufacturers and sold them as organic device film deposition systems.

2006:
Full-scale entry into the glove box business.
● Signed a contract with Korean company K and commenced sales in Japan.
(As a trading company with manufacturing facilities, we have supported manufacturers beyond typical trading company functions.)
● Actively accommodated custom orders; glove boxes with many custom elements were fundamentally designed in-house.
● Proposed and implemented various safety mechanisms to prevent N2 gas accidents.
● Conducted acceptance inspections at our facility to ensure quality for the Japanese market before shipment.

May 2019：
We amicably terminated our agency agreement with Korea Kiyon.

June 2019–present～：
To respond more precisely to customer requests, we began manufacturing and selling our own Brand glove boxes, which we continue to do today.

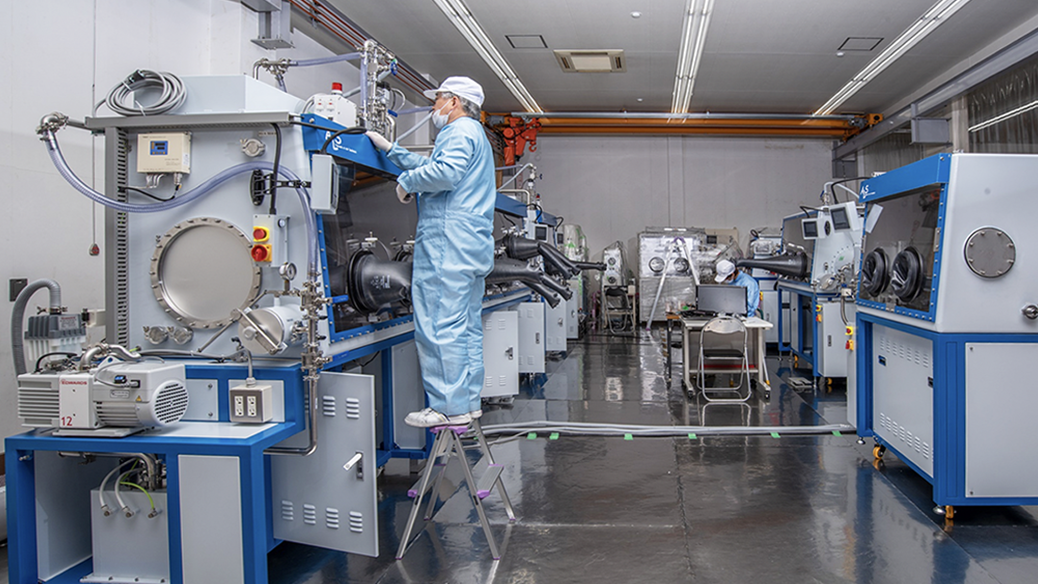

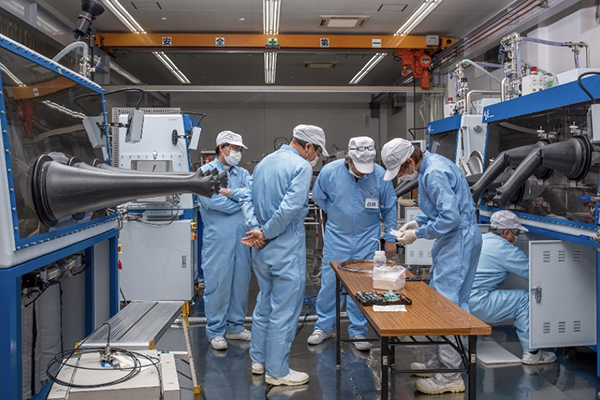

(Photo provided by Yamagata University)

Types of Glove Boxes
Products commonly referred to as glove boxes are classified as follows, each with its own characteristics.
The glove boxes we handle are products called “circulating purification type glove boxes”.

Type		Size	Purification mechanism	Internal purity
Simplified version		Most are small desktop models. Acrylic and stainless steel	None	The image of a sealed case
Vacuum type		Large models are difficult to manufacture, so small desktop types are common, with most being stainless steel models.	None (can be added later)	Depends on the purity of the introduced gas
Purge type		Stainless steel construction with a relatively large size	None (can be added later)	Depends on the purity of the introduced gas
Gas-Circulation Refining Type		They are widely used in sizes ranging from small units for research purposes to large units comparable to a 4.5-tatami-mat room. Separate structures from purification equipment are also common.	Available	Guaranteed below 1 ppm (moisture/oxygen)

Gas-Circulating Purification Type Glove Box

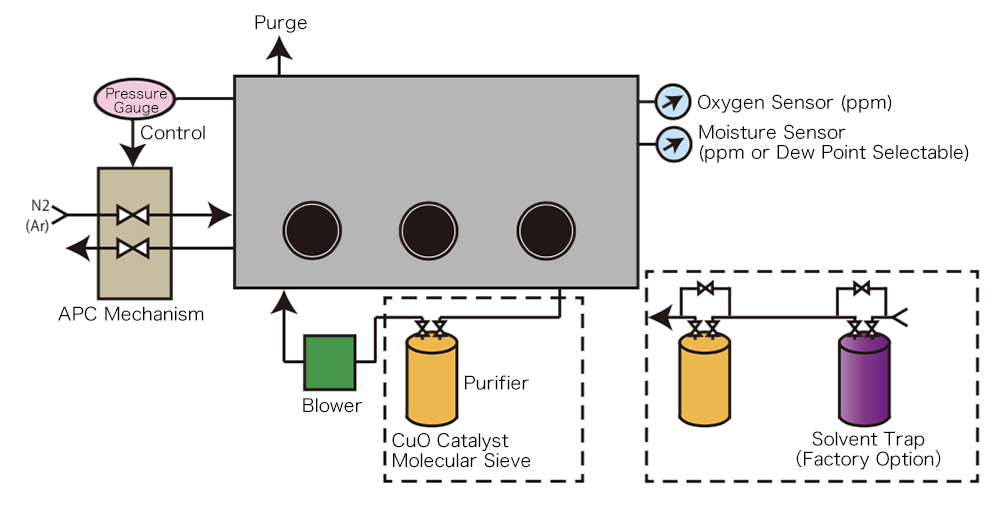

❶Basic Configuration

❷Principles of Purification

Gas species to be removed	Method	Repeated use	Standard equipment
oxygen gas	Chemical reaction involving CuO	Possible: Regeneration using hydrogen gas (*1)	●
Moisture	Adsorption by molecular sieves	Possible: Remove adsorbed moisture by heating in a vacuum.	●
Organic solvent-based gas	Adsorption by molecular sieves	Possible: Remove adsorbed moisture by heating in a vacuum.	Options

(1) Hydrogen gas diluted below the explosion limit is used in the regeneration process. (Maximum 4%)
The regeneration process will automatically restart after pressing the start button.

Features of Our Glove Boxes
①Extensive experience and proven track record with glove boxes

②Custom orders accepted
Our company employs engineers experienced in custom vacuum equipment design, enabling us to meet our customers' detailed requirements.

③Proposing a Safety Mechanism for the Glove Box
・Risk of suffocation
・Precautions for high-temperature areas during playback

④Particle Management (Optional/Large HEPA with Special Structure)

⑤Temperature Management (Optional/Special Radiator Design)

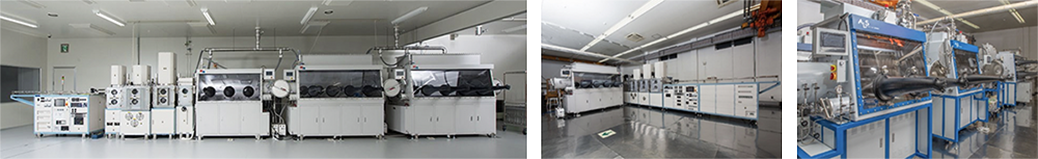

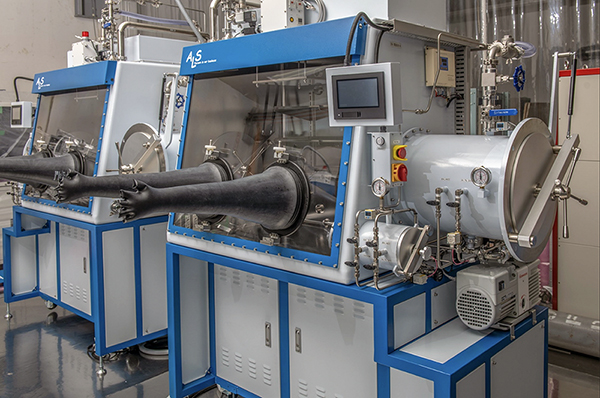

Introducing Our Glove Box Products

　

A variety of glove boxes are available to suit different applications.
We offer a wide range of products, from compact models to large glove boxes, tailored to your specific needs. Please contact us for details.

Various accessories
A wide range of options (the following are just a few examples)

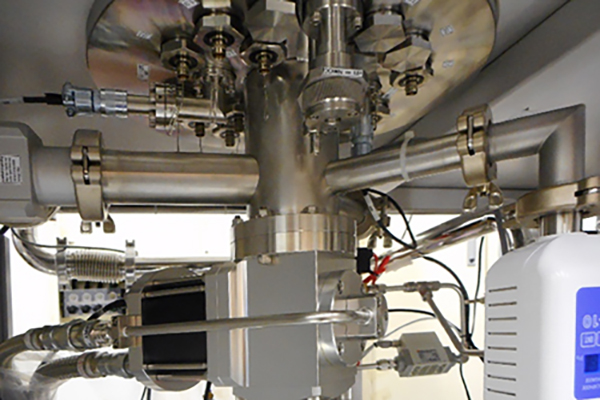

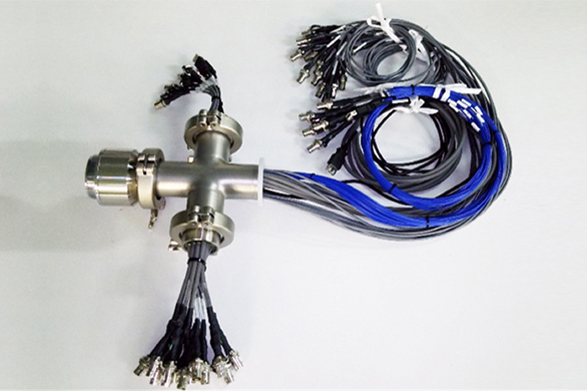

❶Various field-through
We primarily use field-through connectors for vacuum equipment, ensuring high reliability.

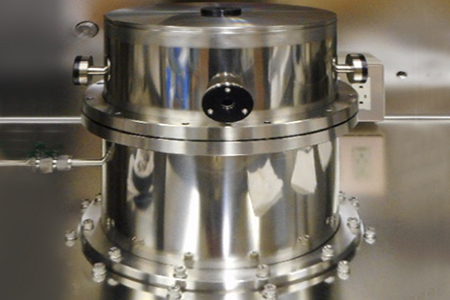

❷Cryostat

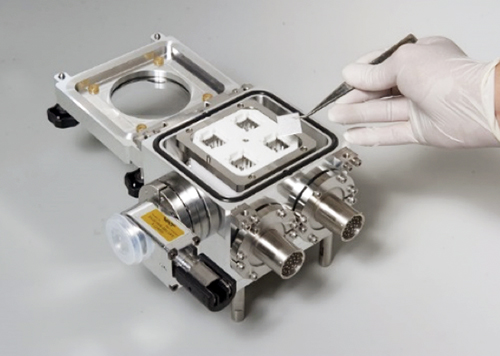

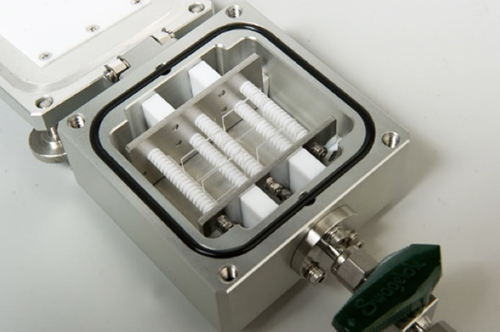

❸Measurement chamber

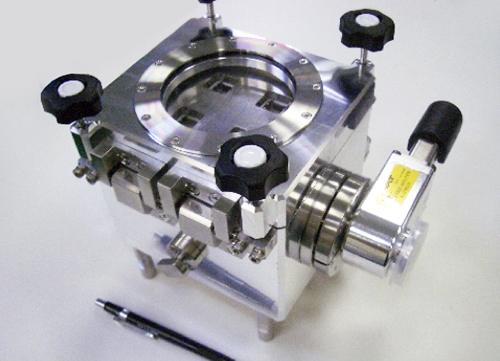

Carrier box (a small chamber designed to prevent atmospheric exposure)
